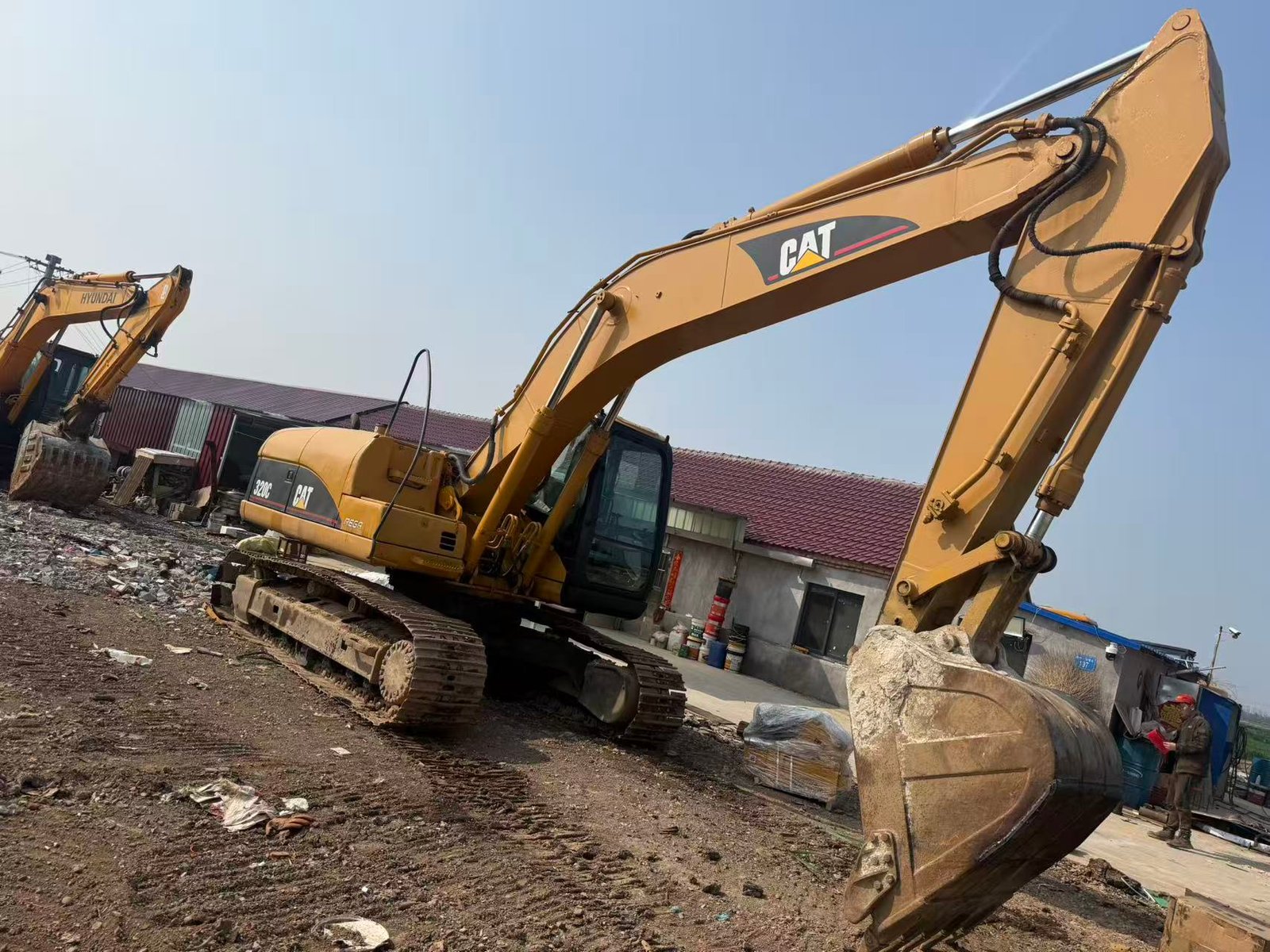

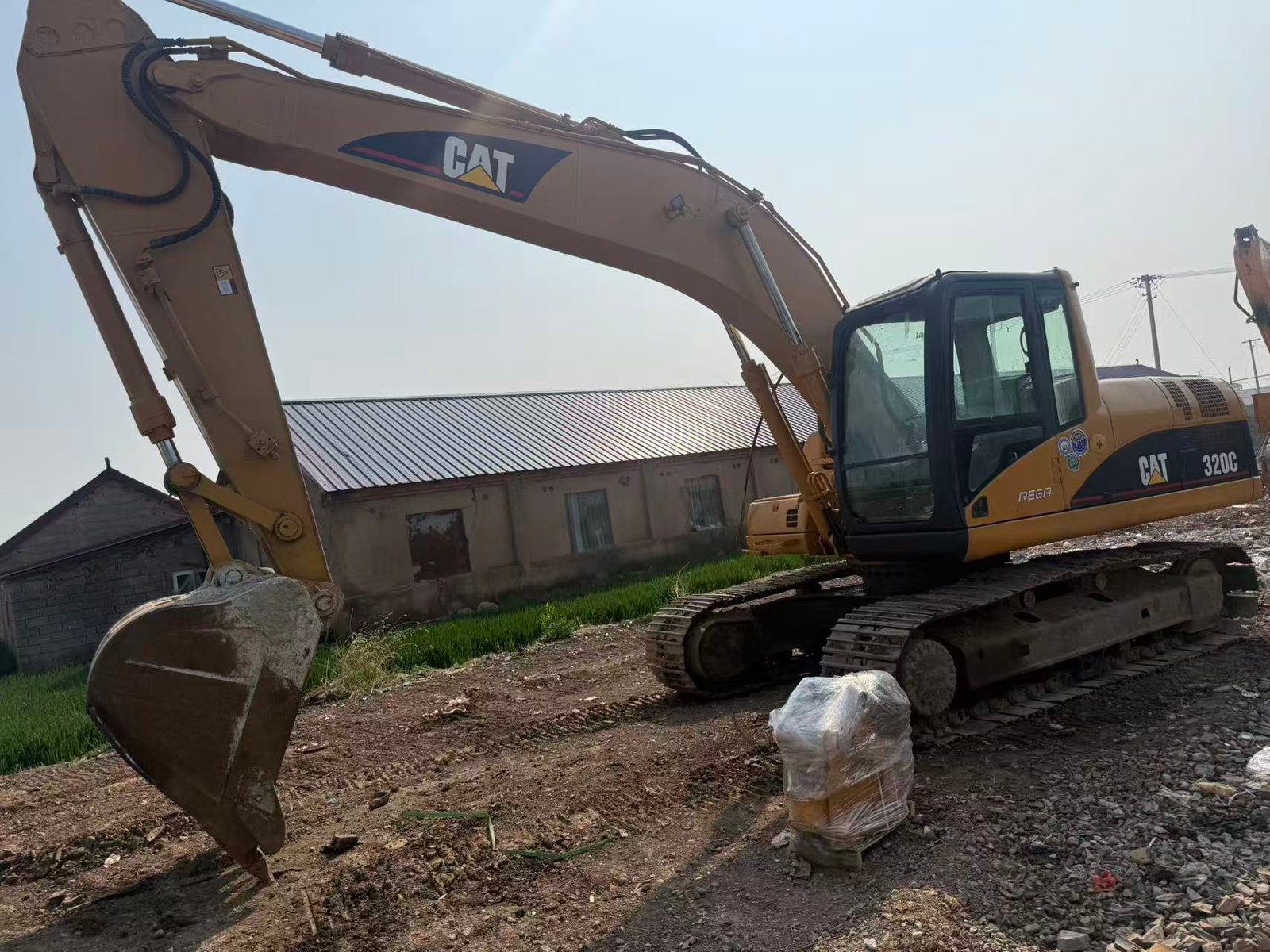

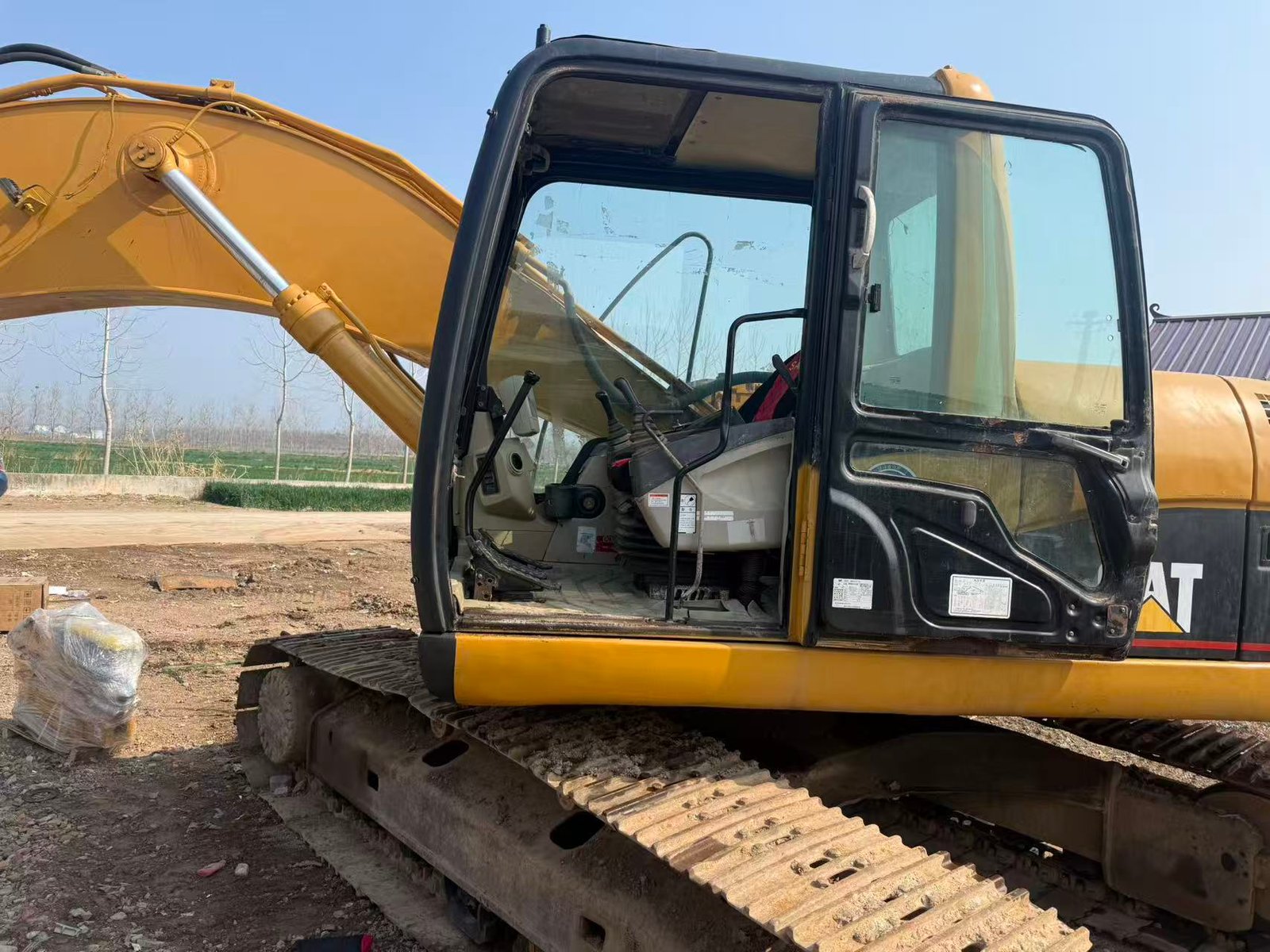

Caterpillar 320C Year 2005

General Information

Operating Weight: 20,800 – 23,000 kg

Bucket Capacity: 0.8 – 1.2 m³

Machine Class: 20 Ton Class Crawler Excavator

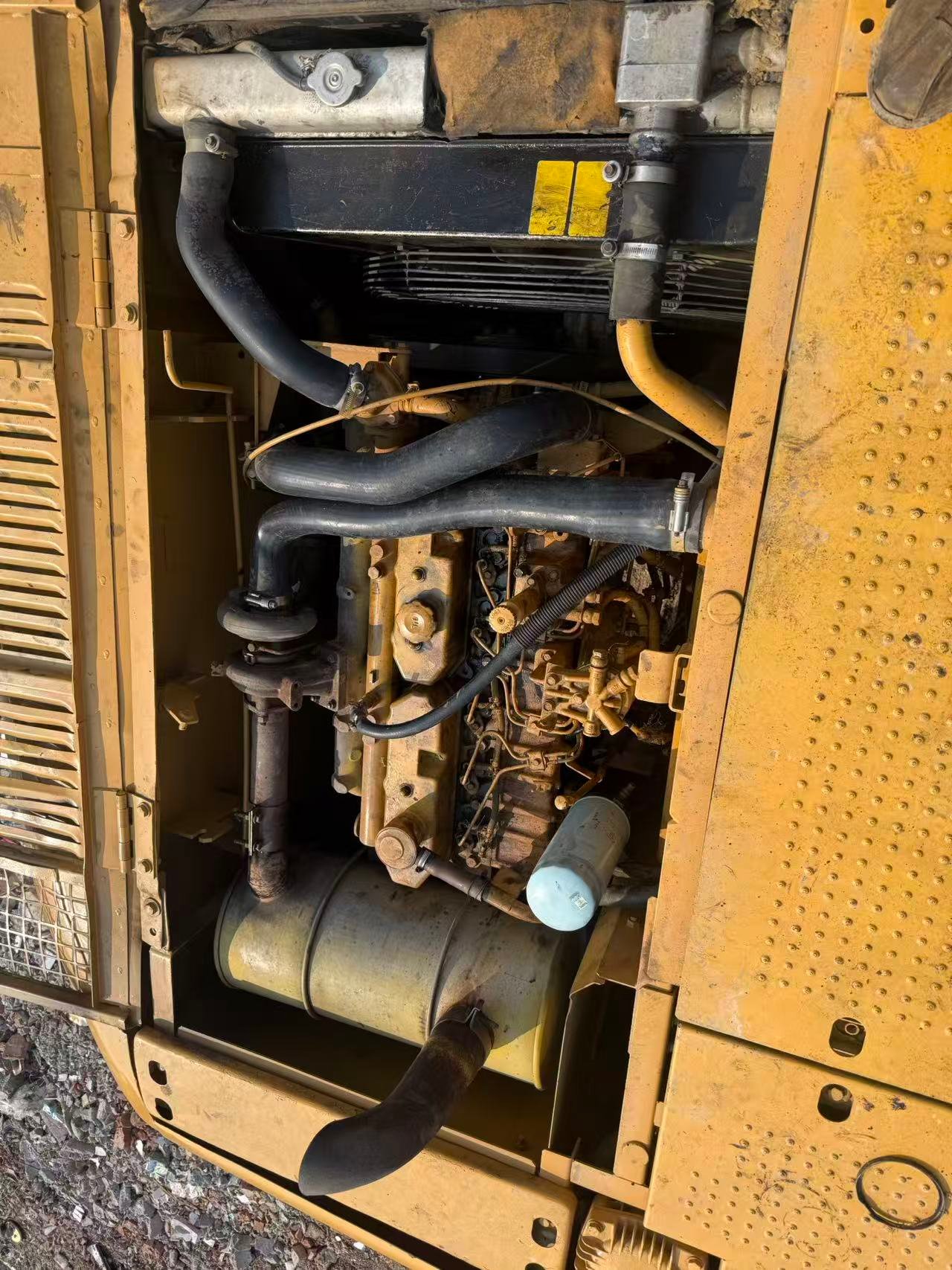

Engine

Engine Model: Cat 3066 ATAAC

Engine Type: 6-cylinder, turbocharged, air-to-air aftercooled

Gross Power: 110 kW (147 hp)

Net Power: 103 kW (138 hp) �

Scribd

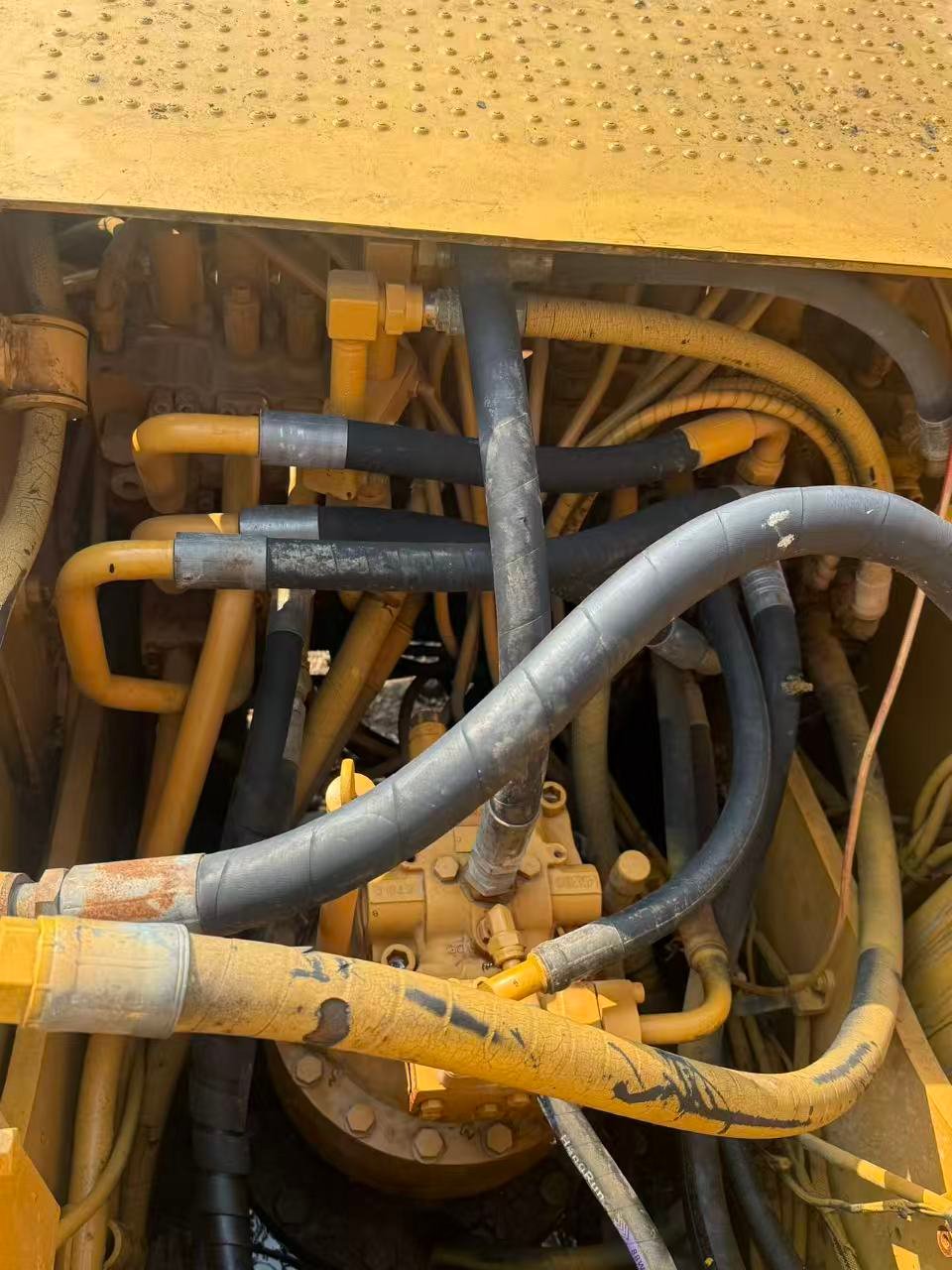

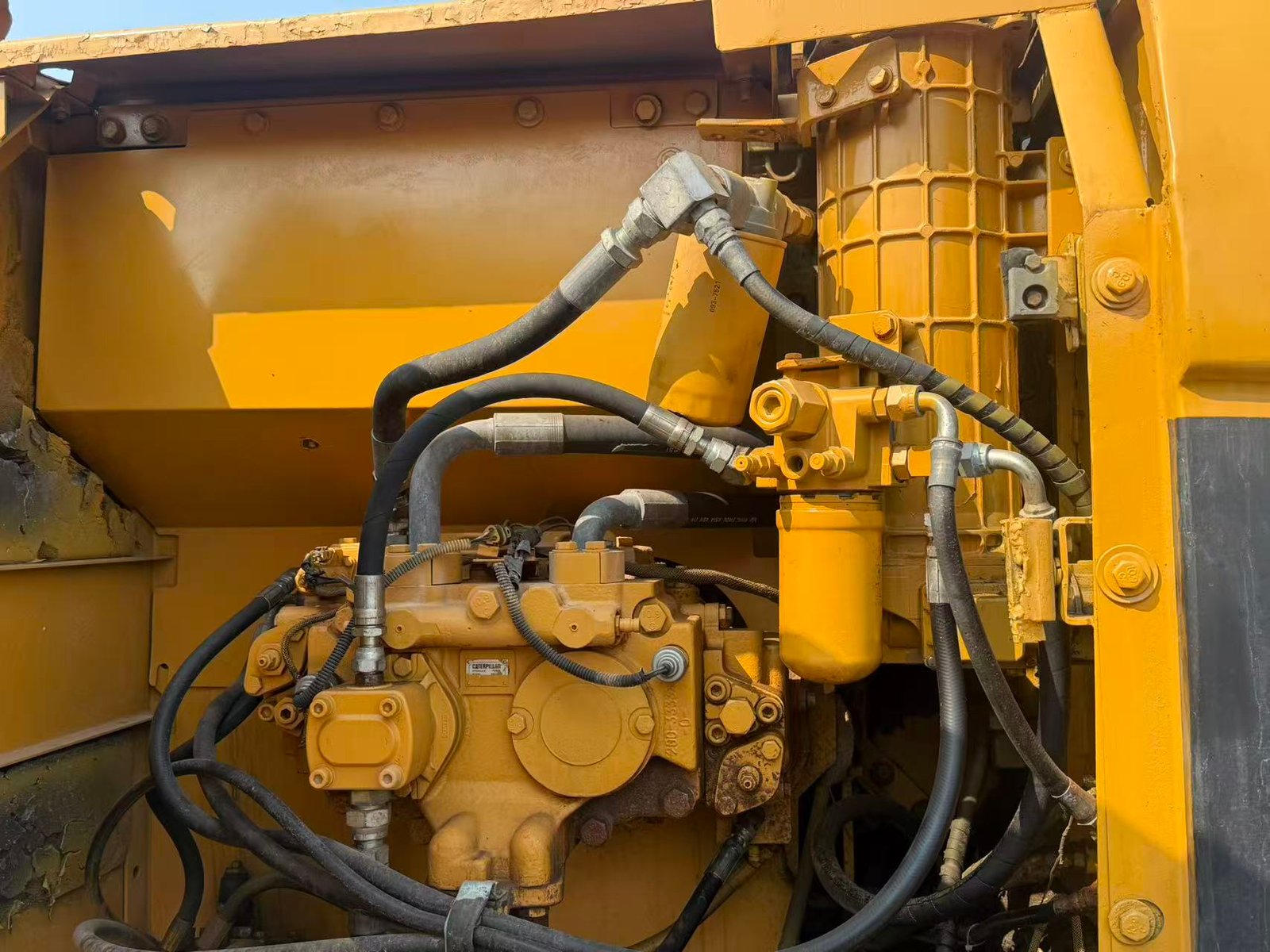

Hydraulic System

Main Pump Flow: 2 × 205 L/min �

租设备租赁与销售

Main Relief Pressure: 34.3 MPa

Pilot Pressure: ~3.9 MPa

Performance

Travel Speed: 5.5 km/h

Swing Speed: ~11.5 rpm �

RitchieSpecs

Drawbar Pull: 196 kN �

Scribd

Bucket Digging Force: ~113 kN �

LECTURA Specs

Dimensions

Overall Length: ~9,400 – 9,500 mm

Overall Width: ~2,980 mm

Overall Height: ~3,000 mm �

LECTURA Specs

Tail Swing Radius: ~2,770 mm

Working Range

Max Digging Depth: ~6,100 mm �

LECTURA Specs

Max Reach at Ground: ~9,200 mm �

LECTURA Specs

Max Cutting Height: up to ~12,400 mm (depending on boom) �

RitchieSpecs

Max Dumping Height: ~7,000 – 8,500 mm

Undercarriage

Track Shoe Width: 600 mm

Track Gauge: ~2,200 mm

Ground Clearance: ~470 mm �

Cat.com

Capacities

Fuel Tank: ~410 L

Hydraulic Oil: ~200 – 240 L

Engine Oil: ~25 L

Key Features

Proven Cat 3066 engine (耐用、好修，非洲市场接受度高)

Stable hydraulic system with good fuel efficiency

Strong structure for quarry & construction use

Simple electronics → very suitable for Africa market
