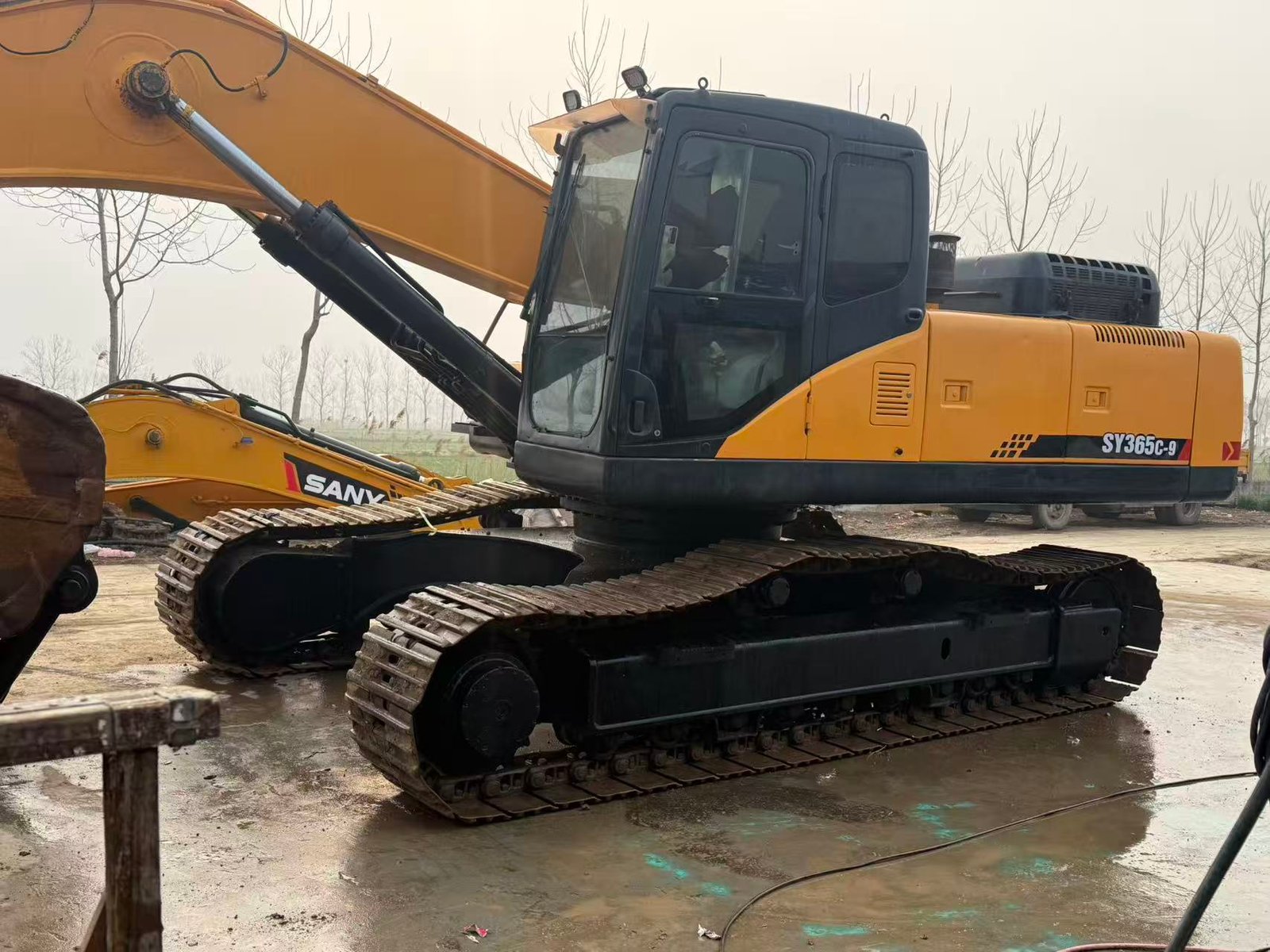

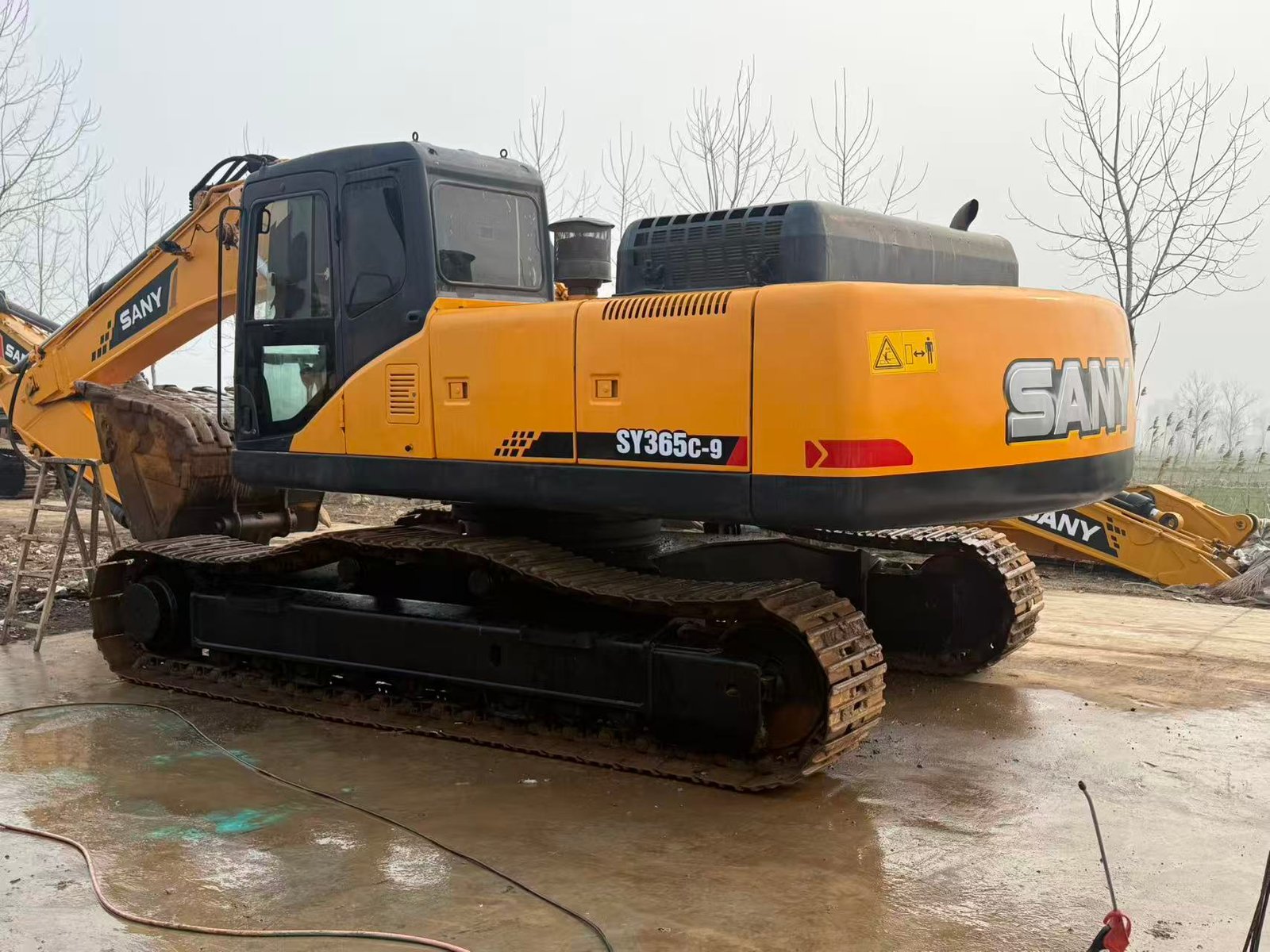

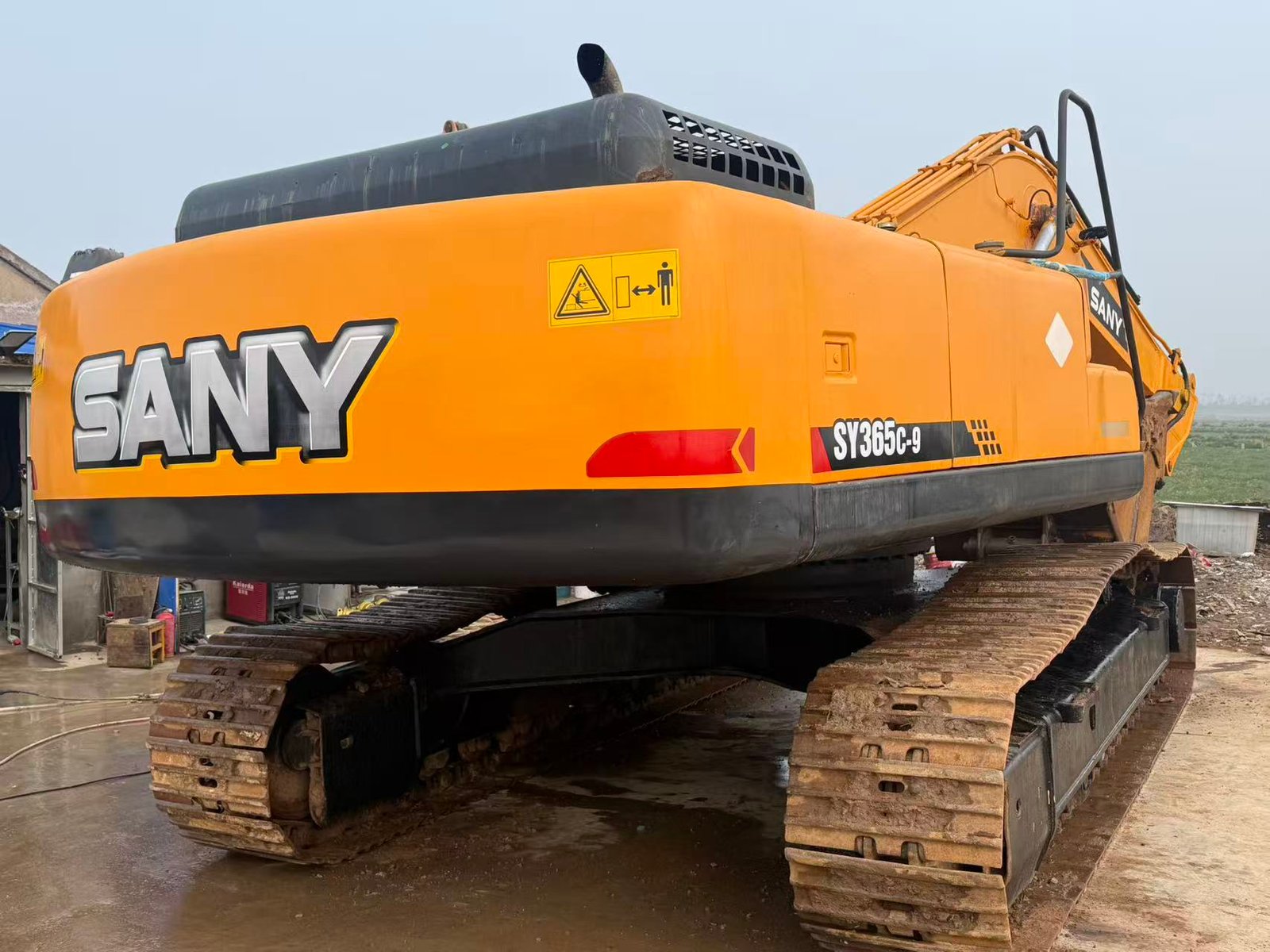

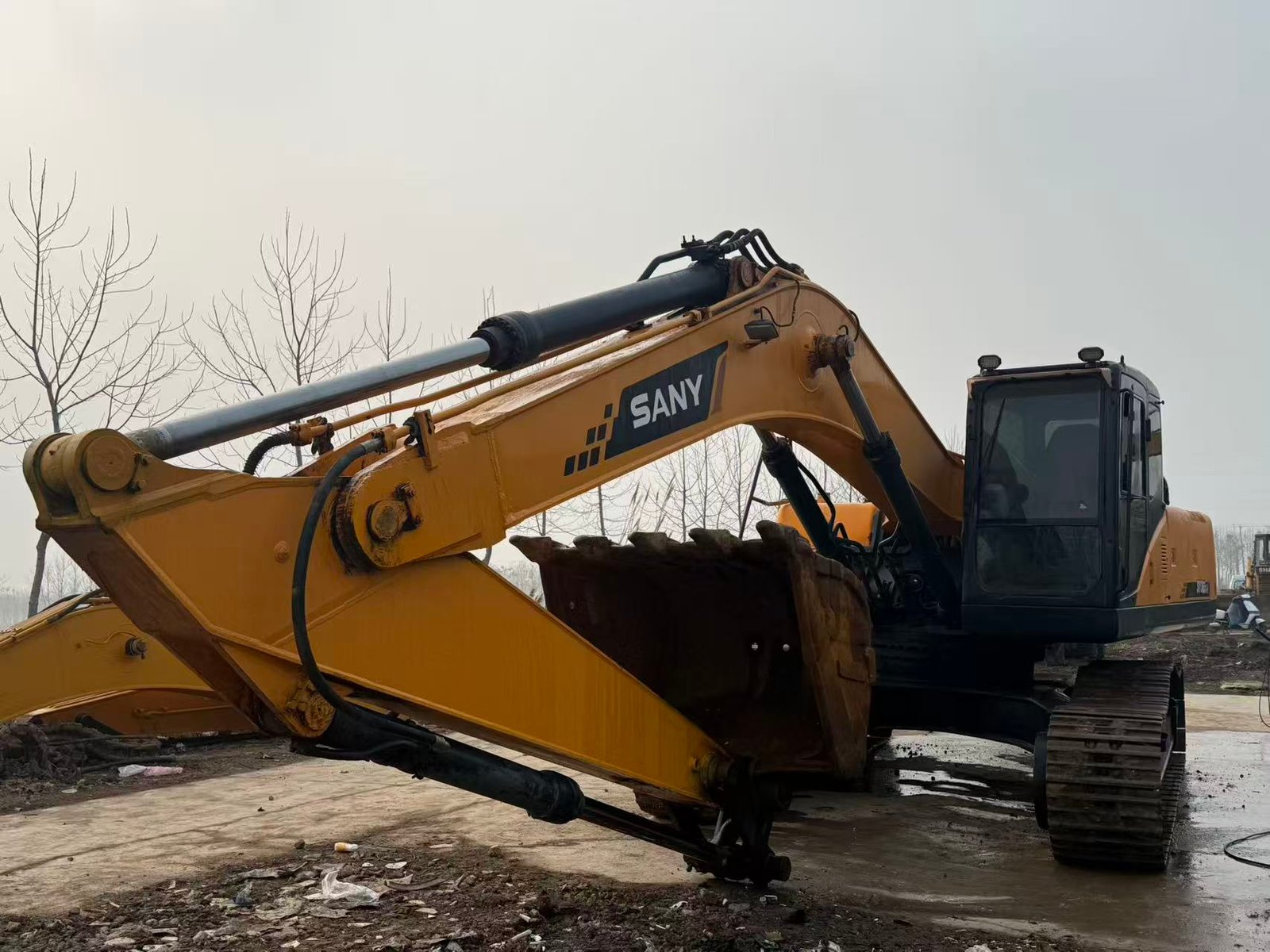

SANY 365C Year2014

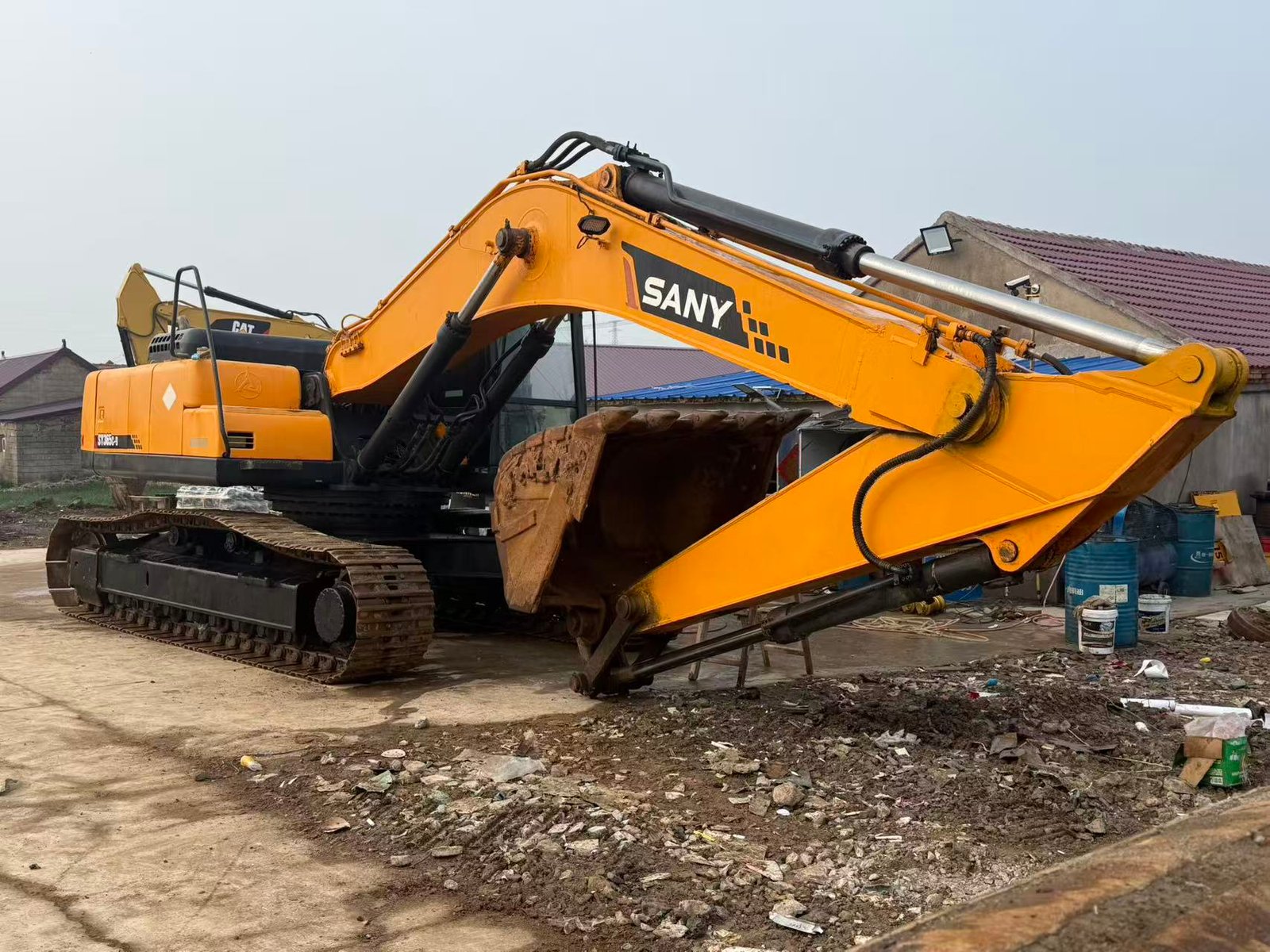

SANY SY365C Excavator – Technical Specifications

General

Operating Weight: 36,700 kg (80,910 lbs) �

SANY America +1

Machine Class: 36 Ton Crawler Excavator

Bucket Capacity: 1.5 – 1.6 m³ �

sanyglobal.com

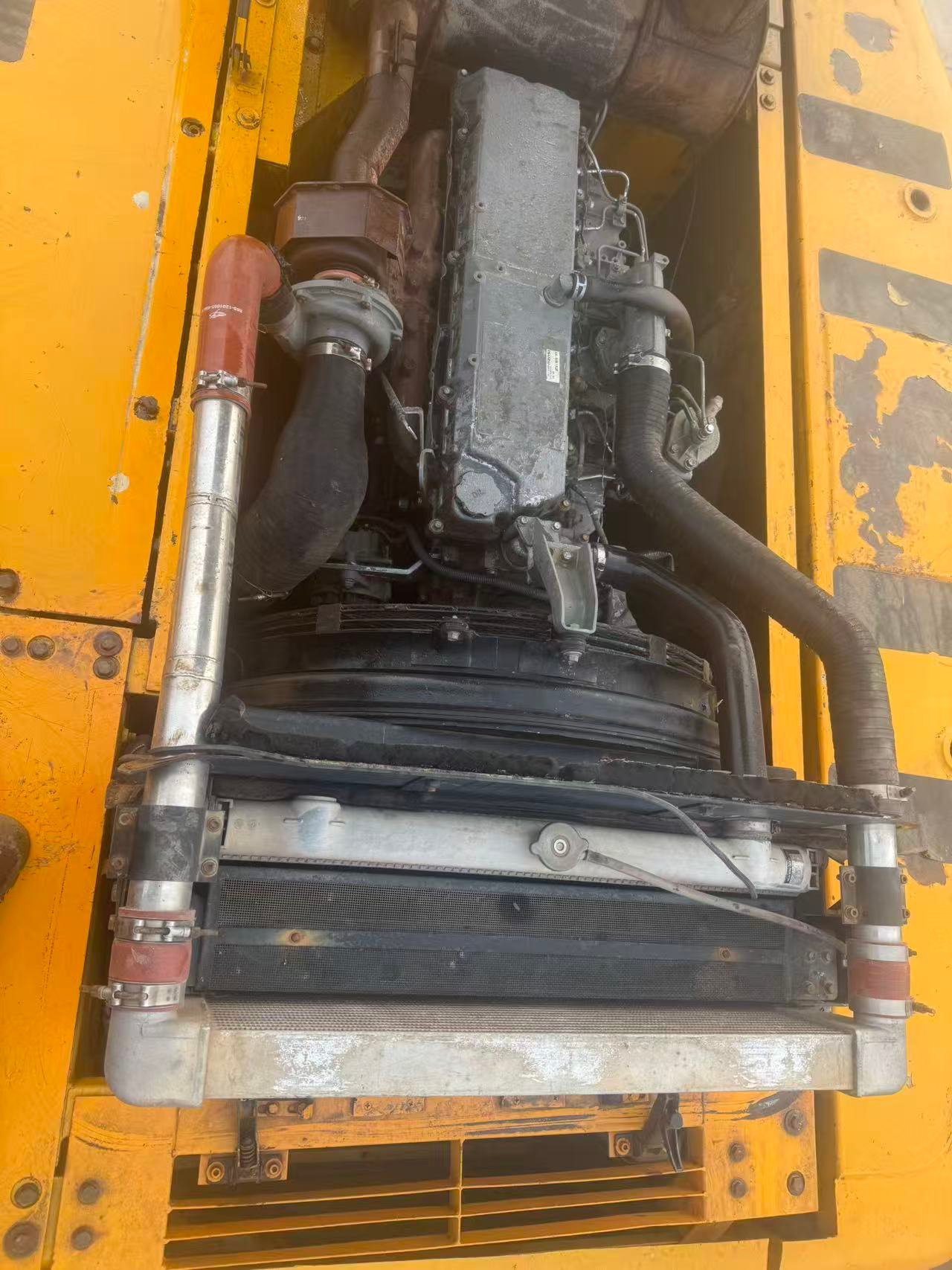

Engine

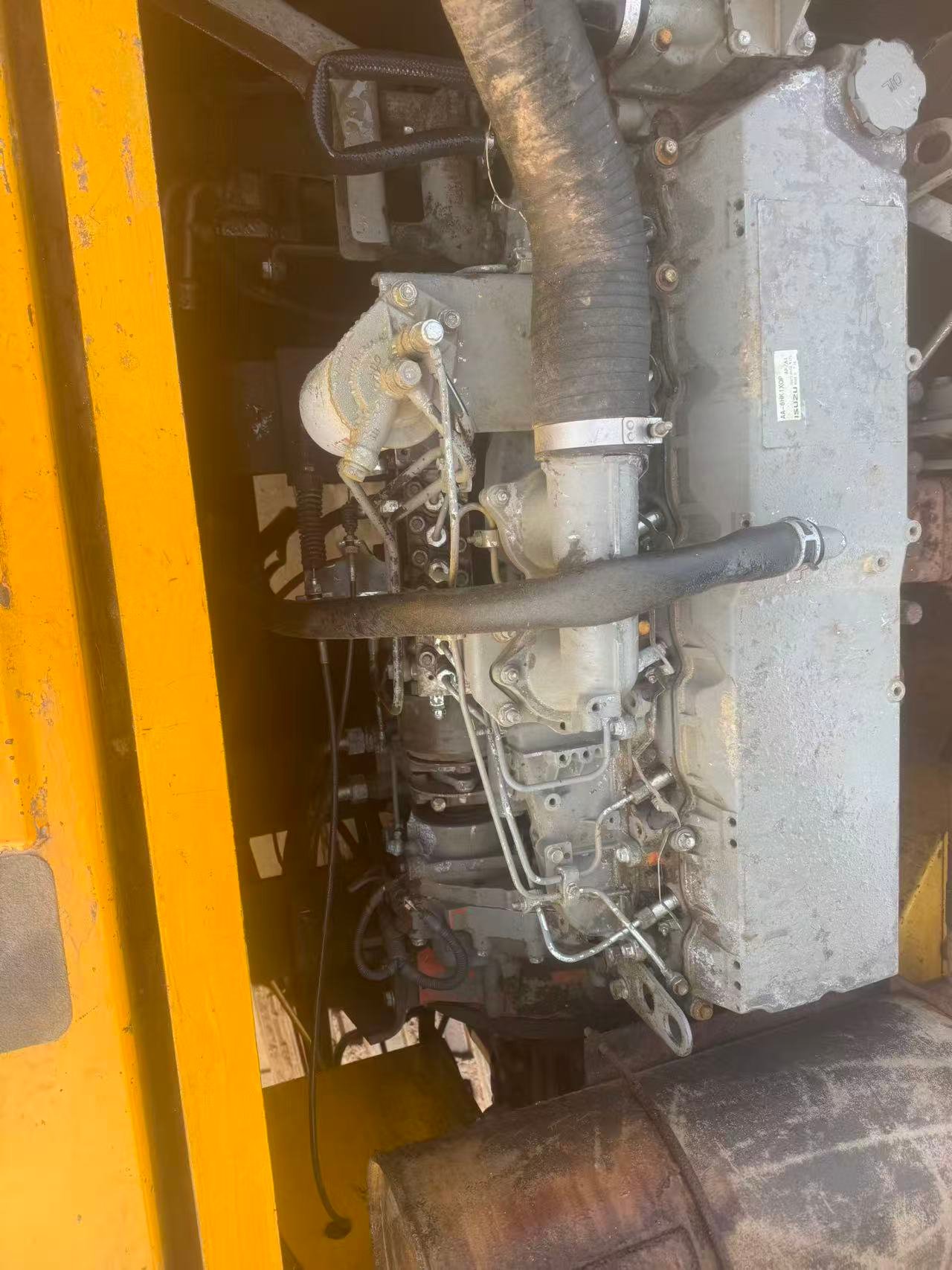

Engine Model: Cummins QSL9 �

sanyglobal.com

Rated Power: 205 kW / 275 HP �

Newman Tractor

Displacement: 8.9 L �

sanyglobal.com

Emission Standard: Tier 3 / Tier 4 (depending on version)

Hydraulic System

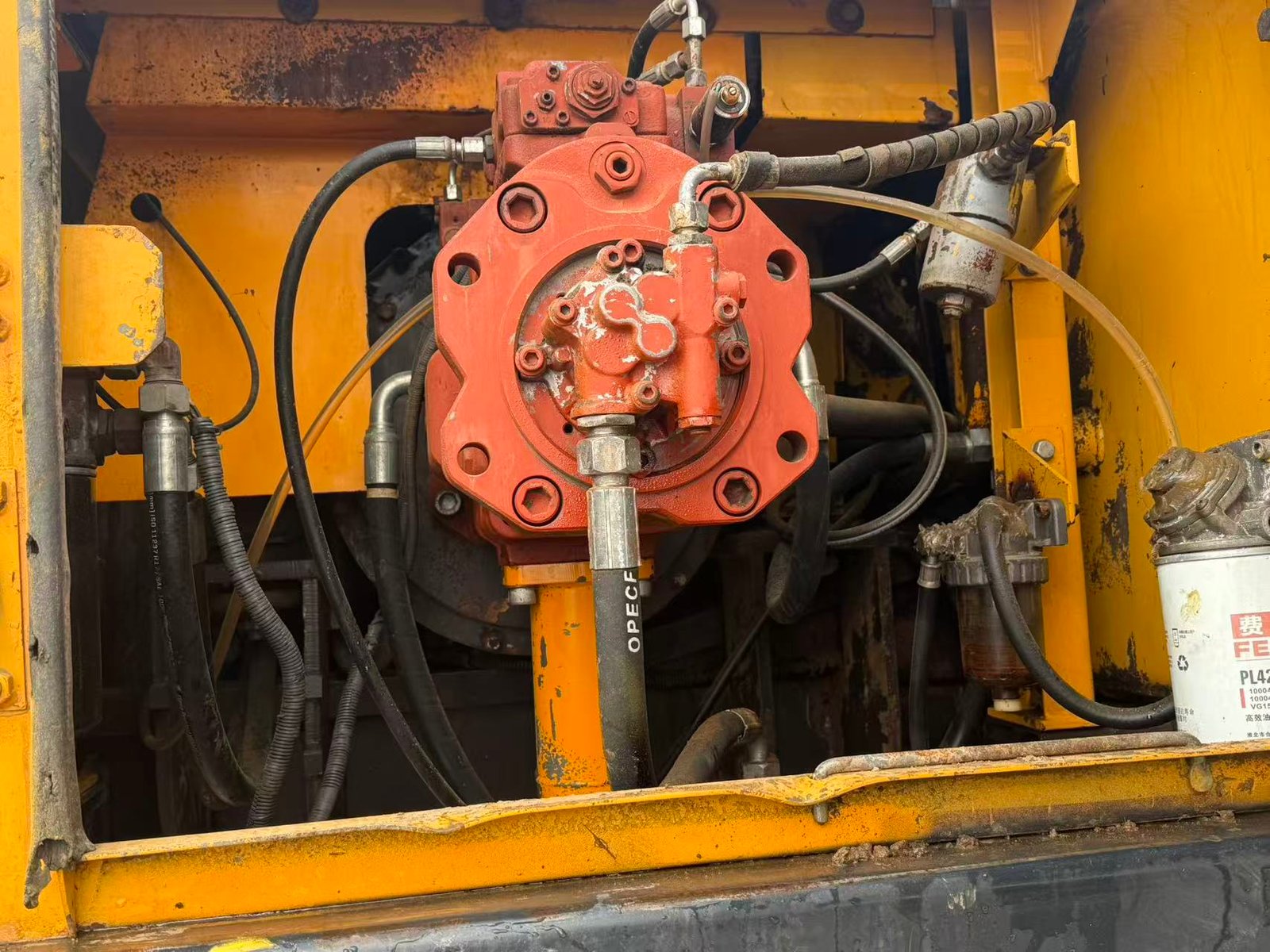

Main Pump Type: Axial piston, variable displacement �

SANY America

Max Pump Flow: 740 L/min (195.5 gpm) �

SANY America

Max System Pressure: 34.3 MPa (4,975 psi) �

Headwater Equipment

Performance

Max Digging Depth: 7,290 mm (23 ft 11 in) �

Newman Tractor

Max Reach (Ground Level): 11,090 mm �

Headwater Equipment

Bucket Digging Force: ≈192–235 kN �

sanyglobal.com

Arm Digging Force: ≈168 kN �

sanyglobal.com

Travel Speed: 3.4 / 5.2 km/h �

SANY America

Swing Speed: 9.8 rpm �

SANY America

Gradeability: 35° �

SANY America

Dimensions

Overall Length: 11,100 mm (36 ft 5 in) �

Newman Tractor

Overall Width: ≈3,390 mm (11 ft 1 in) �

Newman Tractor

Overall Height: ≈3,350 mm

Tail Swing Radius: 3,300 mm �

Headwater Equipment

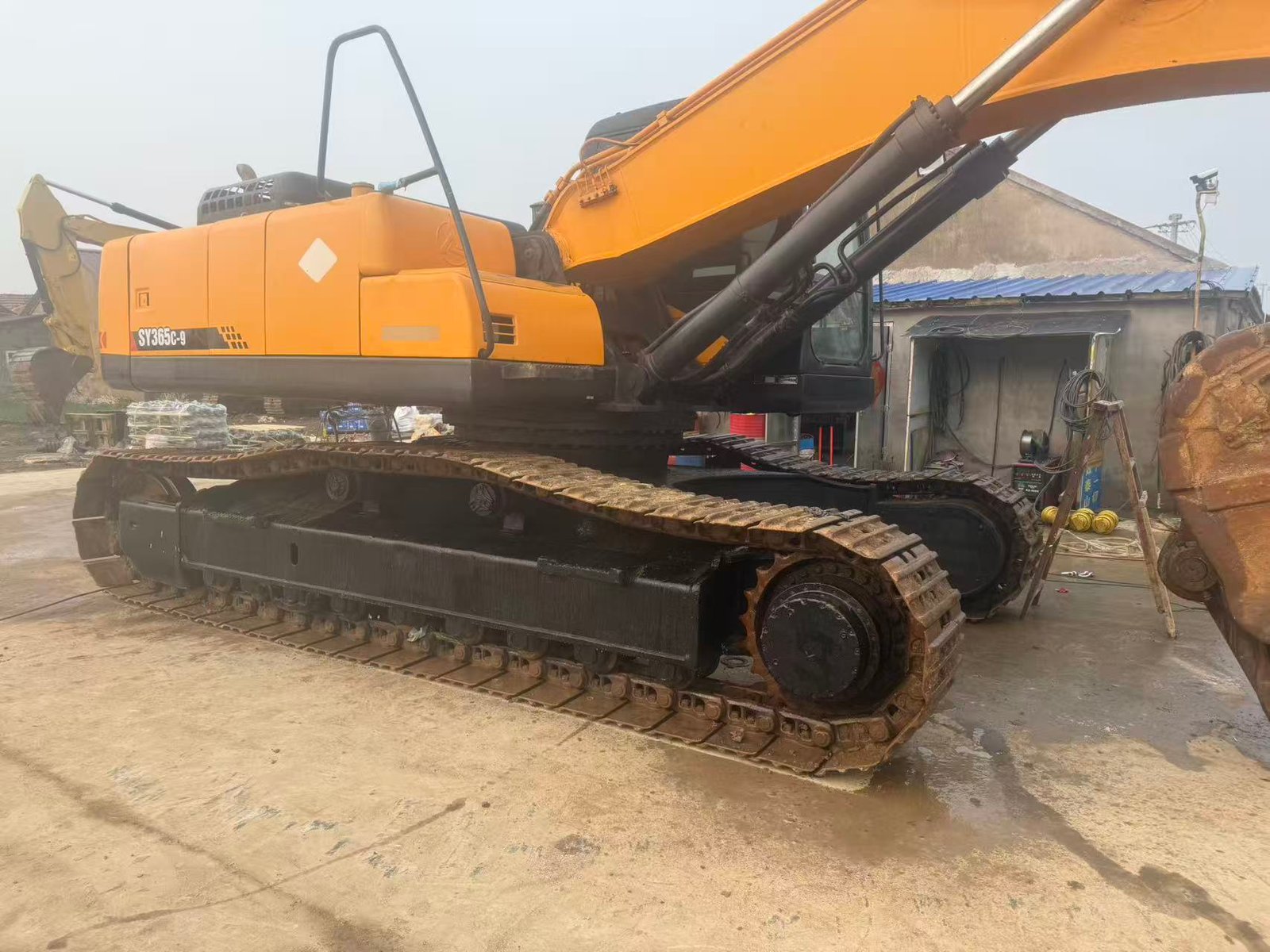

Undercarriage

Track Type: Steel track �

SANY America

Track Rollers: 9 per side �

Headwater Equipment

Carrier Rollers: 2 per side �

Headwater Equipment

Ground Pressure: 48.7 kPa �

SANY America

Capacities

Fuel Tank: ≈540 L �

sanyglobal.com

Hydraulic Tank: ≈340–380 L �

sanyglobal.com

Key Features

Advanced negative flow hydraulic system (fuel saving & smooth control) �

Headwater Equipment

Heavy-duty structure for mining / quarry / demolition

Comfortable cab with A/C, camera, ergonomic controls �

Newman Tractor

Standard auxiliary hydraulic lines (breaker ready)
